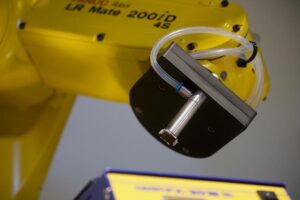

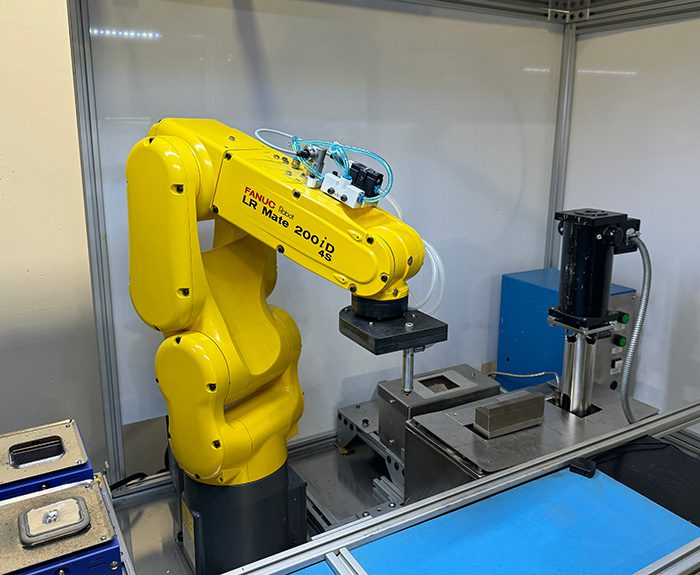

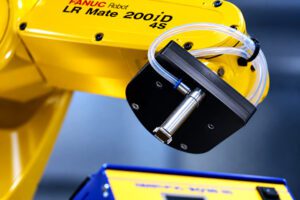

Robotic Hot Solder Dip
Robotic Hot Solder Dip Services
Spirit’s automated lab technology provides a variety of hot solder dip services to safeguard products against environmental and oxidation issues, without damaging the original component. Our laboratory team can control all aspects of the process as dictated by the customer.
Spirit’s Robotic Hot Solder Dip (HSD) is specialized to provide the following services:
- Conversion to Tin-Lead
- RoHS Compliance
- QFN, PLCC, and DFN packages
- Ball pitch from 0.40mm
- Processing of ceramic and plastic BGAs and LGAs
- LGA Gold Removal
Our HSD services delivery your device as close to production-ready as possible, safeguarded by Spirit’s high-touch care and expertise.
Capabilities & Capacity
Manufacturing Capabilities
- Low-volume and prototype-ready production
- Small-lot flexibility with full serialization and traceability
- Integrated test development and automation
- Prototype-to-Production Capacity
- First Article Manufacturing
- Domestic US manufacturing (3rd shift capacity availability)
Tin Whisker Mitigation
Spirit’s process removes 99.9% of the pure tin and replaces it with SnPb to prevent tin whiskers. Our process leaves the integrity of the original pad for high quality electrical interconnect.
Gold Mitigation per J-STD-001
Gold mitigation is the process of removing or reducing excess gold plating from electronic component leads, terminals, and surfaces prior to soldering, in order to prevent gold embrittlement and ensure reliable solder joint integrity.
Certifications & Compliance
- DLA Lab Qualified MIL-STD-883
- ISO 9001:2015 / AS9100:2016
- IPC-A-610, IPC J-STD-001
- ANSI/ESD S20.20 and JESD625 compliance
- Processed according to GEIA-STD-0006
- Component Traceability & Quality Assurance
- Class 0A ESD certified workstation
*Contact Spirit directly for sensitive projects requiring special handling or controlled environments.
Industry Standards:
- J-STD-001
- J-STD-004
- J-STD-006
- J-STD-033
- IPC-7711/7721
- GEIA-STD-0006
- ANSI/ESD S20.20 and JESD625 for ESD Control
- AS9100 Quality Management for Process Controls
Discuss Your Project with
Spirit's Technical Team
Spirit can provide complete process development from prototyping through launch. Contact our seasoned team of engineers to discuss your next project.
